Icons

Description

Icons provide information related to basic instrument and controller status.

Displayed icons depend on which instrument is used, and the instrument configuration.

Status bar TPS: Specific icons

Icon	Description
	Indicates connected instrument.
	Indicates that a geometric scale factor is applied to the project.
	Indicates that a height shift is applied to the project.
	iCON build + iCON site Plus Indicates that tilted plane setup is applied.
	Indicates measure mode.
	Indicates compensator/level status.
	Indicates prism lock setting
	Indicates the selected prism. See also: Set prism type step-by-step
	Indicates prism height setting. Allows you to define two user settings for prism height.
	Indicates that a PowerSearch is running.

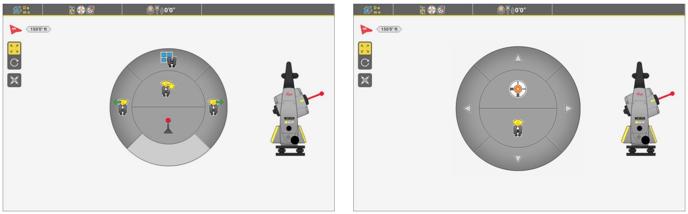

Move & Search Pilot icons, TPS

The Move & Search Pilot is available in the Status 2 menu.

It is only available when connected to a Robotic Total Station. It enables remote control of the vertical and horizontal rotation of the telescope on the Total Station. PowerSearch1), an intelligent prism search method, can be triggered from this control.

Icon	Description
	Activates a local PowerSearch. If no prism is found, a full PowerSearch occurs.
	PowerSearch left/right. Activates an intelligent prism search in the specified direction.
	Switch to Joystick control.
	ATR search. Instrument searches locally for a prism.
	Switch to PowerSearch.
	Moves instrument in specified direction. Tap key again to increase speed. Three speeds are available.
	Indicates the current vertical angle of the total station. The graphic updates in real-time and helps to point the instrument in the correct direction.
	Cancel current search.
	To close the Move & Search Pilot, tap outside the control, in the Map screen.

Status bar GNSS: Specific icons GNSS

Icon	Description
	Position status Displays the current position solution: fixed PPP/SBAS, or xRTK (for iCON iCG60 only) float navigated no position
	Number of visible satellites Displays the number of satellites used in position calculation with the current satellite settings.
	Tilt functionality of antenna When tilt functionality is activated, the antenna icon displays the status of initialisation: ready or not initialised.
	Radio status Displays the real-time mode of the radio.
	Modem status Displays the real-time mode of the modem.
	PPP status Displays the PPP status: converging converged
	RTK Bridging Displays the RTK Bridging status.
	SBAS status Displays the current SBAS status: searching active ☞ When active, the sensor position is being calculated using SBAS corrections. ☞ When there is no icon, the sensor is either outside the supported SBAS coverage zones, or the system is waiting for SBAS corrections to be used for calculating the sensor position.

Status bar: Battery and Memory icons TPS + GNSS

Icon	Description
	Indicates battery status.
	Indicates memory or data storage device type

Map screen icons

Icon	Description
	User Point
	Control Point
	Point being staked/being set out
	Staked/Set out and stored within tolerance
	Staked/Set out and stored outside tolerance
	Delete point
	Point with one or several linked images.
	Reference Line
	Selected Line
	Target point position. Measured; within tolerance; outside tolerance
