Walls/Grid lines

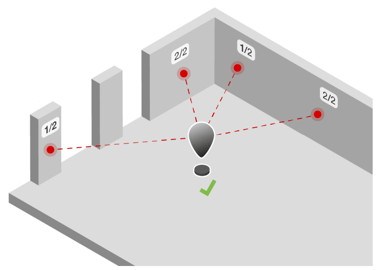

Position the instrument in 2D (no height) using two non-parallel walls or
grid lines.

• Follow the steps indicated in the software.

Instructions:

Do	Do Not

Additional Options

Icon
	Layers Turn the visibility of layers on or off or lock layers.

☞ The distance between the measurements should be as big as possible.

☞ Use the Set Setup Height tool to add a height coordinate to the instrument position. The tool can be launched immediately after the setup calculation.

☞ It is recommended to use approximately perpendicular lines
